Defender & S111 Console Dash – Replacement Top Panel Only

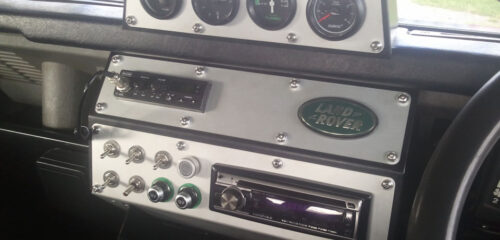

Raptor Defender Console

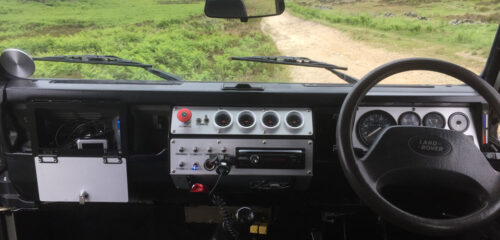

Raptor Defender Console

Defender & S111 Console Dash – Replacement Top Panel Only

£16.00

£19.20 including VAT

This is a replacement top panel only for those who already own a Raptor Console.

If you are requiring a complete Console please see Defender and S111 Console Dash.

The panels are made from 2mm aircraft grade anodised aluminium which can be easily cut or drilled to your specific requirements if needed.

Special Cuts. Please scroll down the page for panel layout information

  • There is an extra charge of £12.00 (+vat) for each special cut panel due to programming.
  • Please ensure you choose the blank “Provide Specifications” option when selecting your panel choice.
  • Then tick “I would like to provide my own specifications (£12.00+vat)” and provide your specifications in the box provided.

Provide Specifications (+£12.00)

Silver
Black
Clear selection

Special cut specifications

Check this box if you would like to provide your own specification. Please then provide your specification in the notes area on the checkout page.

SKU: R0300 Category:

Description

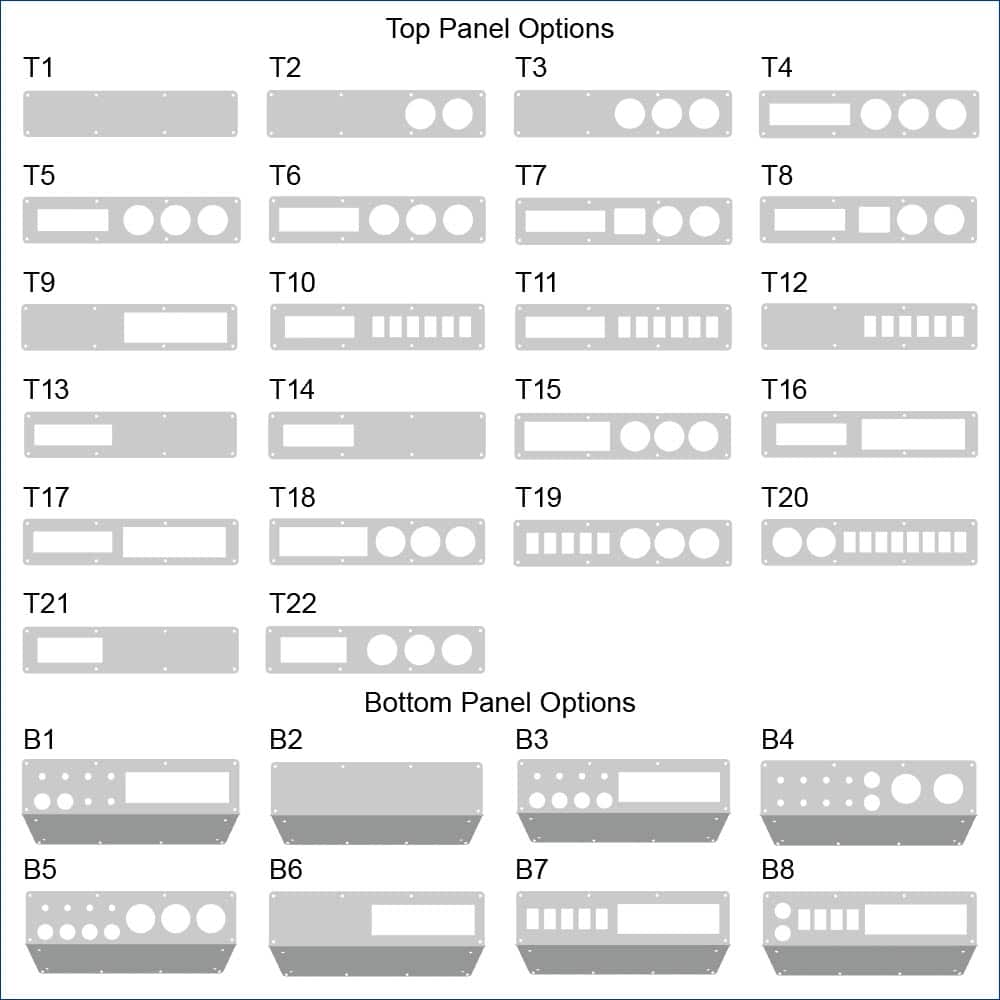

Console Top Descriptions:

  • T1 Blank plate.
  • T2 2 x 52mm Holes for standards gauges. 230mm of space for CB or other cut outs.
  • T3 3 x 52mm Holes for standards gauges. 160mm of space for CB or other cut outs.
  • T4 3 x 52mm Holes, 140 x 37mm Hole for CB radio that fits: MIDLAND 78, 278. Danita 3000. Thunderpole T1000. Maxon CM10, CM70. Intek M-110/120/130. TTi TCB 660/771
  • T5 3 x 52mm Holes, 124 x 38mm Hole for CB radio that fits: MIDLAND 38, 98, 100, 121, 199, 203 plus, 210 DS. Team TS-6M. TTi TCB 550/560
  • T6 3 x 52mm Holes, 140.5mm x 41.5mm Hole for Team TS-9M CB radio.
  • T7 2 x 52mm Holes, one 55 x 45 square hole, 140 x 37mm Hole for CB radio that fits the same CB’s size as T4.
  • T8 2 x 52mm Holes, one 55 x 45 square hole that fits the LR clock, 124 38mm Hole for CB radio that fits the same CB’s size as T5.
  • T9 Radio / CD Din only – 183mm x 53 mm.
  • T10 Same CB size as T5, Carling/ARB Locker Switch cut outs.
  • T11 Same CB size as T4, Carling/ARB Locker Switch cut outs.
  • T12 Carling/ARB Locker Switches cut outs.
  • T13 CB only, CB size as T4.
  • T14 CB only, CB size as T5.
  • T15 3 x 52mm gauge, 151 x 51mm CB.
  • T16 Radio/ CD Din + 124 x 38mm CB as T5.
  • T17 Radio/ CD Din + 140 x 37mm CB as T4.
  • T18 3 x 52mm gauge, 156 x 51 CB, Intek M-760, M-495, M150, TTi TCB 881
  • T19 3 x 52mm gauge + 5 carling switch holes
  • T20 2 x 52mm gauge + 8 carling switch holes
  • T21 CB only 115 x 44 – Cobra 19DX IV EU
  • T22 3 x 52mm gauge + CB 115 x 44 Cobra 19DX IV EU

Please note due to the fact that the 2 faces are angled a CB radio and CD player must be at opposite ends of the Console, the maximum width for your CB is 156mm.

The CB is always best in the top panel as our brackets are designed for this (CB brackets are fitted before we send your Console to you).

NOTE: You can not have 2 full size din mounts in the Console. When designing your lay out, don’t forget your charging sockets. (Note; sockets are always best to the far left so that wires from items on charge are not hanging across other switches).

Additional information

Weight 1 kg
Choose Top Panel

T1 Blank plate, T2 2 x 52mm Holes for standards gauges. 230mm of space for CB or other cut outs., T3 3 x 52mm Holes for standards gauges. 160mm of space for CB or other cut outs., T4 3 x 52mm Holes, 140 x 37mm Hole for CB radio that fits: MIDLAND 78, 278. Danita 3000. Thunderpole T1000. Maxon CM10, CM70. Intek M-110/120/130. TTi TCB 660/771, T5 3 x 52mm Holes, 124 x 38mm Hole for CB radio that fits: MIDLAND 38, 98, 100, 121, 199, 203 plus, 210 DS. Team TS-6M. TTi TCB 550/560, T6 3 x 52mm Holes, 140.5mm x 41.5mm Hole for Team TS-9M CB radio., T7 2 x 52mm Holes, one 55 x 45 square hole, 140 x 37mm Hole for CB radio that fits the same CB’s size as T4., T8 2 x 52mm Holes, one 55 x 45 square hole that fits the LR clock, 124 38mm Hole for CB radio that fits the same CB’s size as T5., T9 Radio / CD Din only – 183mm x 53 mm (not compatible with panels B1, B3, B6, B7, B8), T10 Same CB size as T5, Carling/ARB Locker Switch cut outs., T11 Same CB size as T4, Carling/ARB Locker Switch cut outs., T12 Carling/ARB Locker Switches cut outs., T13 CB only, CB size as T4., T14 CB only, CB size as T5., T15 3 x 52mm gauge, 151 x 51mm CB., T16 Radio/ CD Din + 124 x 38mm CB as T5., T17 Radio/ CD Din + 140 x 37mm CB as T4., T18 3 x 52mm gauge, 156 x 51 CB, Intek M-760, M-495, M150, TTi TCB 881, T19 3 x 52mm gauge + 5 carling switch holes, T20 2 x 52mm gauge + 8 carling switch holes, T21 CB only 115 x 44 – Cobra 19DX IV EU, T22 3 x 52mm gauge + CB 115 x 44 Cobra 19DX IV EU, Provide Specifications (+£12.00)
Choose Colour

Silver, Black
