Defender & S111 Console Dash – Replacement Bottom Panel Only

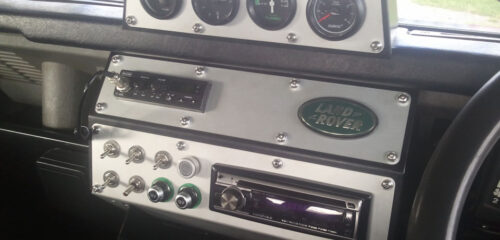

Raptor Defender Console

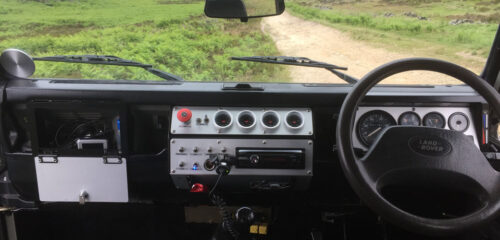

Raptor Defender Console

Defender & S111 Console Dash – Replacement Bottom Panel Only

£28.34

£34.00 including VAT

This is a replacement bottom panel only for those who already own a Raptor Console.

If you are requiring a complete console please see Defender and S111 Console Dash.

The panels are made from 2mm aircraft grade anodised aluminium which can be easily cut or drilled to your specific requirements if needed.

If you have a special Raptor Air Conditioning Console you must let us know prior to placing your order as you will need a Special cut panel.

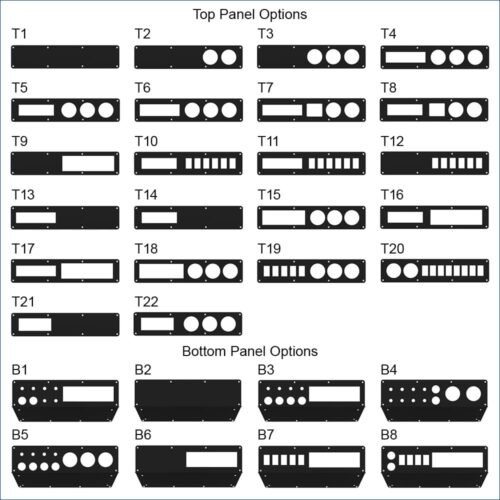

Special Cuts. Please scroll down the page for panel layout information

  • There is an extra charge of £12.00 (+vat) for each special cut panel due to programming.
  • Please ensure you choose the blank “Provide Specifications” option when selecting your panel choice.
  • Then tick “I would like to provide my own specifications (£12.00+vat)” and provide your specifications in the box provided.



Special cut specifications

Check this box if you would like to provide your own specification. Please then provide your specification in the notes area on the checkout page.

SKU: R0200 Category:

Description

Console Bottom Descriptions:

  • B1 Standard radio/CD player din mount cut out. 6 x 12mm holes for standard switches. 2 x 29mm holes for 12v and USB sockets.
  • B2 Blank plate.
  • B3 Standard radio/CD player din mount cut out. 4 x 12mm holes for standard switches. 4 x 29mm holes for 12v and USB sockets.
  • B4 2 x 52mm gauge. 2 x 29mm holes for 12v and USB sockets. 8 x 12mm holes for standard switches.
  • B5 3 x 52mm gauge. 4 x 29mm holes for 12v a USB sockets. 4 x 12mm holes for standard switches.
  • B6 Radio/ CD Din only.
  • B7 Radio/ CD Din hole. 5 carling switch holes
  • B8 Radio/ CD Din hole.4 carling switch holes. 2 x 29mm holes for 12v a USB sockets



Please note due to the fact that the 2 faces are angled a CB radio and CD player must be at opposite ends of the Console, the maximum width for your CB is 156mm.

The CB is always best in the top panel as our brackets are designed for this (CB brackets are fitted before we send your Console to you).

NOTE: You can not have 2 full size din mounts in the Console. When designing your lay out, don’t forget your charging sockets. (Note; sockets are always best to the far left so that wires from items on charge are not hanging across other switches).

Additional information

Weight 1 kg
Choose Bottom Panel

B1 Standard radio/CD player din mount cut out. 6 x 12mm holes for standard switches. 2 x 29mm holes for 12v and USB sockets., B2 Blank plate., B3 Standard radio/CD player din mount cut out. 4 x 12mm holes for standard switches. 4 x 29mm holes for 12v and USB sockets., B4 2 x 52mm gauge. 2 x 29mm holes for 12v and USB sockets. 8 x 12mm holes for standard switches., B5 3 x 52mm gauge. 4 x 29mm holes for 12v a USB sockets. 4 x 12mm holes for standard switches., B6 Radio/ CD Din only., B7 Radio/ CD Din hole. 5 carling switch holes, B8 Radio/ CD Din hole.4 carling switch holes. 2 x 29mm holes for 12v a USB sockets, Provide Specifications (+£12.00)
Choose Colour

Silver, Black
